主要用途與適用范圍 Main Uses and Scope of Application

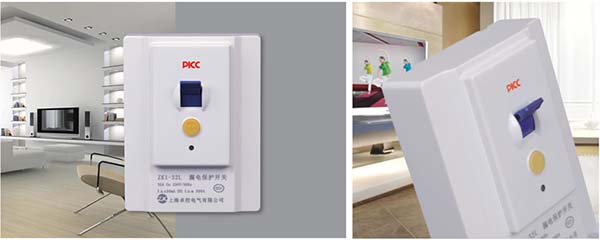

        ZK1-32L/40L 系列漏電保護開關 ( 以下簡稱保護開關 ) 適用于額定工作電壓 230V/50HZ，額定電流不大于 40A 的單相電源線路的防觸電、漏電保護。保護開關適用于空調、電熱水器、太陽能熱水器、自動售貨機、飲水機、電冰箱洗衣機等用電設備上提供漏電保護尤其是適用于 5P 以下家用空調電源螺釘接線安裝，具有防觸電與漏電保護功能。保護開關符合國家標準GB16916.1《家用和類似用途的不帶過電流保護的剩余電流動作斷路器 (RCCB)》。本產品無過栽保護與短路保護功能。

ZK1-32L/40L series earth leakage circuit breaker (hereinafter referred to as protection switch) is applicable for single-phase power lines of rated working voltage 230V/50HZ and rated current not exceed 40A, for protecting against electric shock or earth leakage. It is applicable for air conditioners, electric heaters, solar water heaters, vending machines, water dispensers, refrigerators, washing machines and other electric equipment, especially suitable for household air conditioners under 5P with power screw wiring installation, with functions of electric shock and leakage protection. This protection switch is in conformity with the national standard GB16916.1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCB). It has no overload or short-circuit protection.
